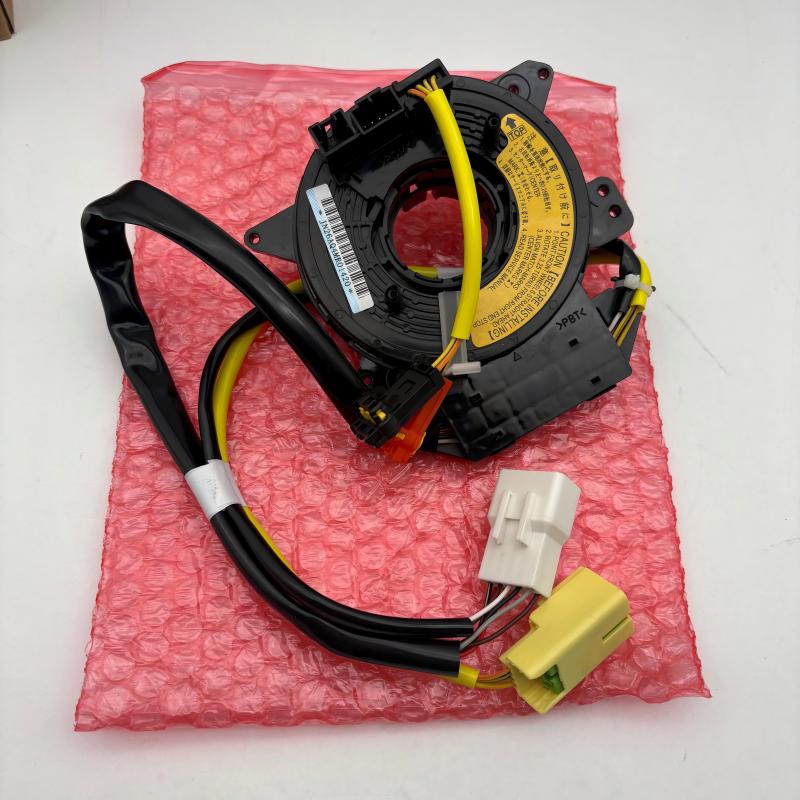

Clock Spring 83196-FG020 for Subaru Forester 2009-2010 Impreza 2008-2010 WRX STI – Airbag Spiral Cable
Product Description – Clock Spring 83196-FG020 for Subaru Forester/Impreza/WRX/STI (2008-2010)
🔍 IMPORTANT – PLEASE READ
This steering wheel clock spring (airbag spiral cable / roll connector) is a critical safety component behind the steering wheel. It maintains electrical connection for driver airbag (SRS), horn, and steering wheel controls as the wheel turns.
⚠️ CRITICAL: Always compare connector shape, pin count, and appearance with your original part. For confirmation, contact us with your VIN.
OEM Cross Reference: 83196-FG020, 83196FG020.
Return Policy: Not returnable once installed. Ensure compatibility before purchase.
Direct Fit for Subaru Models
| Model | Years | Chassis |
|---|---|---|
| Forester | 2009–2010 | SH |
| Impreza / WRX / STI | 2008–2010 | GE/GH/GR/GV |
| Outback | 2008–2010 | BM/BR – verify |
| Legacy GT | 2008–2010 | Verify with original part |
Technical Specifications
- Brand: ROYUAN – Premium aftermarket manufacturer
- Function: Clock spring / Airbag spiral cable / Steering roll connector
- Connector: Female+Male, Rectangular, Blade & Pin
- Placement: Steering column, behind steering wheel
- Weight: approx. 0.25–0.45 kg
- OE Numbers: 83196-FG020, 83196FG020
Key Functions
This steering wheel airbag spiral cable enables: ✅ Airbag (SRS) activation – critical safety component ✅ Horn operation ✅ Steering wheel audio controls (volume, station, mode) ✅ Cruise control switches.
Signs of Failure
A faulty clock spring may show: ⚠️ Airbag warning light on dashboard 📢 Horn not working 🎛️ Steering wheel controls unresponsive 🔊 Clicking/grinding noise when turning 🚨 Driver airbag may not deploy in collision.
⚠️ IMPORTANT SAFETY NOTE & INSTALLATION TIPS
Before Installation: Disconnect battery negative terminal and wait at least 5 minutes for airbag system discharge. Never disassemble the clock spring; replace if airbag has deployed.
Centering: Ensure front wheels straight. New clock spring comes with a centering clip – do NOT remove clip until fully installed. Turn rotor clockwise to end stop, then back approx. 2.5 turns to center.
Important Note: For 2011+ Subaru models, part number 83196FG030 may be required (includes extra wiring for Bluetooth pod). Verify your original part before ordering.
Verification: Compare connectors/pins with original. Provide VIN for confirmation. Professional installation strongly recommended.
Post-Installation: Test horn, steering controls, and ensure airbag warning light turns off.
Quality You Can Trust
- High-purity copper ribbon: stable signal transmission
- Flame-retardant housing: meets safety standards
- 300,000-cycle endurance test (-40°C to +85°C)
- Centering clip included – do not remove early
- 1-year warranty
Package Includes: 1 x Clock Spring Assembly (with centering clip), installation guide available on request.
