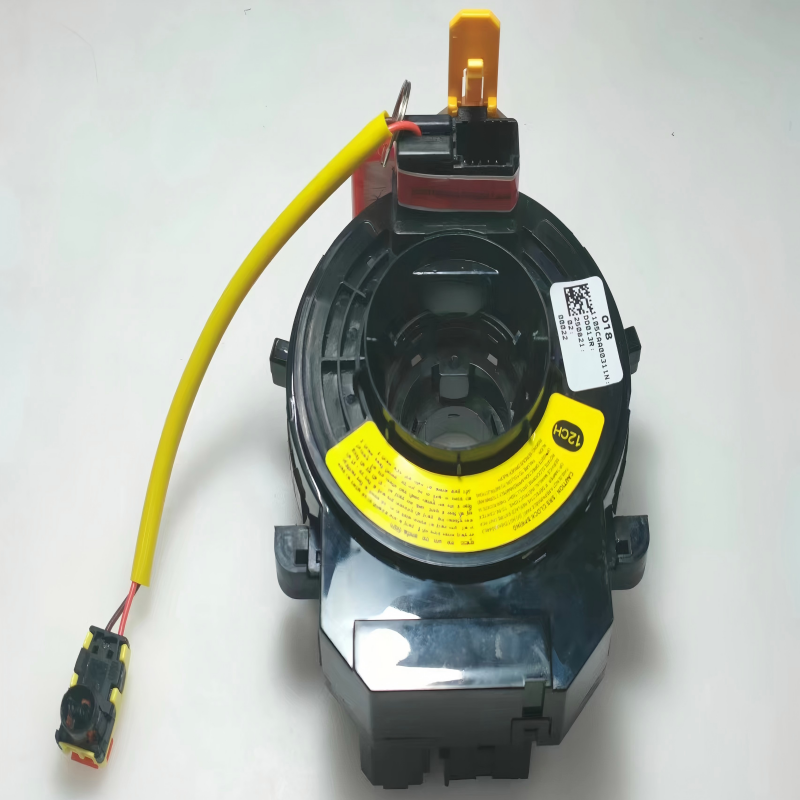

Clock Spring 1105GAA00311N for Tata Olero / Marazzo / Thar 2015-2020 – OEM 1105GAA00311N

Direct replacement clock spring for Tata Olero, Marazzo, and Thar (2015-2020). OEM number: 1105GAA00311N. Restores electrical connection for airbag, horn, and steering wheel controls (if equipped). Features high-strength copper ribbon and flame-retardant plastic. Passed 300,000-cycle test, -40°C to +85°C operation. Includes centering clip. Verify connector configuration matches original part. CE/ISO9001 certified. 1-year warranty.

Product Description – Clock Spring 1105GAA00311N for Tata Olero / Marazzo / Thar 2015-2020

🔍 IMPORTANT – PLEASE READ

This clock spring is designed for Tata Olero, Marazzo, and Thar models (approx. 2015–2020). However, trim levels, steering wheel options, and production years may affect connector pin layout. Always visually compare with your original part. For 100% confirmation, contact us with your VIN.

Direct Fit for Tata Models
This clock spring is engineered for the following Tata vehicles :

Model Approx. Years Notes
Tata Olero 2015–2020 Verify connector type
Tata Marazzo 2018–2020 Mid/high trims may have multifunction wheel
Tata Thar 2015–2020 (2nd Gen) Check steering wheel control configuration

Compatible OEM Numbers: 1105GAA00311N (primary).

Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. It maintains continuous electrical connection as the wheel turns, enabling:

  • ✅ Proper airbag deployment
  • ✅ Reliable horn operation
  • ✅ Steering wheel audio, phone, and cruise controls (if equipped)

A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. Prompt replacement is highly recommended for safety.

⚠️ IMPORTANT SAFETY NOTE

A worn or broken clock spring can lead to airbag malfunction. Since it is responsible for two safety devices (airbag and horn), it is highly advised to replace a faulty unit immediately .

Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly .

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year against manufacturing defects

Specifications

Specification Details
Compatible Vehicles Tata Olero / Marazzo / Thar (approx. 2015–2020)
OEM Part Number 1105GAA00311N
Product Name Clock Spring / Spiral Cable / Airbag Rotor
Material High-strength flame-retardant plastic + High-purity copper ribbon
Operating Temperature -40°C to +85°C
Durability Test 300,000-cycle flex test
Certifications CE, RoHS, ISO9001
Warranty 12 months

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
