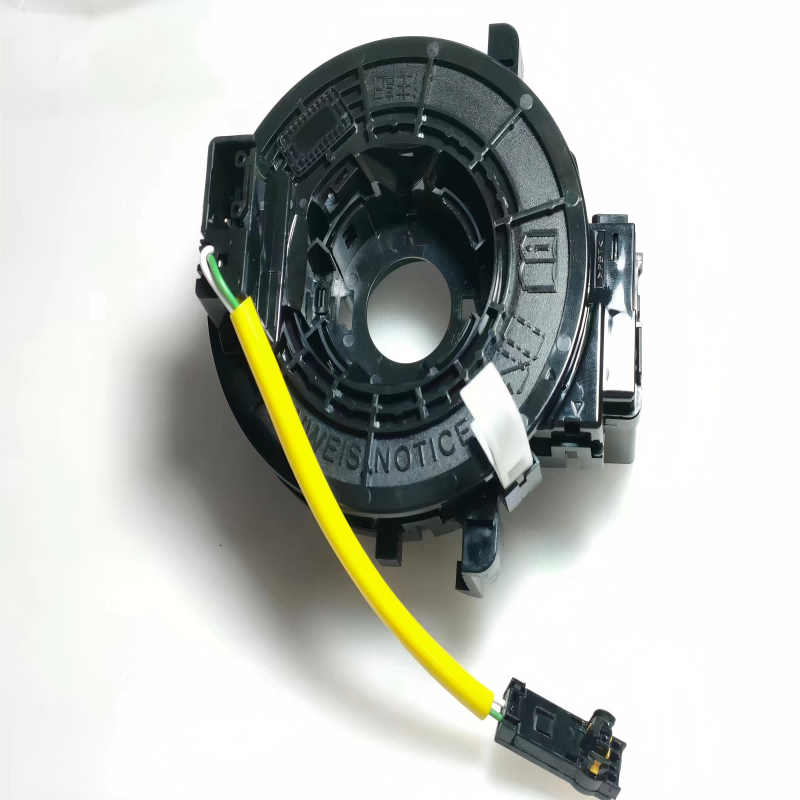

Clock Spring 37480M68P00 for Suzuki Swift 2017-2020 – 2 Pin – OEM 37480M68P00
Product Description – Clock Spring 37480M68P00 for Suzuki Swift 2017-2020 (2 Pin)
🔍 IMPORTANT – PLEASE READ
This clock spring is designed for Suzuki Swift (2017-2020) models with a 2-pin connector. This basic configuration supports only airbag and horn functions, without steering wheel audio controls. Always visually compare with your original part. For 100% confirmation, contact us with your VIN.
Direct Fit for Suzuki Swift (2017–2020)
This clock spring is engineered specifically for the fourth generation Suzuki Swift (ZC/ZC83S) produced from 2017 to 2020 with a 2-pin steering wheel connection. It directly replaces OEM part number 37480M68P00, guaranteeing a perfect fit and reliable performance when properly matched.
| Model | Years | Notes |
|---|---|---|
| Suzuki Swift | 2017–2020 | Base models without multifunction steering wheel |
Compatible OEM Numbers: 37480M68P00 (primary).
2-Pin Configuration
This clock spring features a 2-pin connector, used on entry-level Suzuki Swift models without multifunction steering wheel controls. It maintains essential safety connections for the airbag and horn.
Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. It maintains continuous electrical connection as the wheel turns, enabling:
- ✅ Proper airbag deployment
- ✅ Reliable horn operation
A faulty clock spring may trigger the airbag warning light, cause horn failure, or – in vehicles equipped with more pins – make multifunction buttons unresponsive. Prompt replacement is highly recommended for safety.
⚠️ IMPORTANT SAFETY NOTE
A worn or broken clock spring can lead to airbag malfunction. Since it is responsible for two safety devices (airbag and horn), it is highly advised to replace a faulty unit immediately .
Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly .
Quality You Can Trust
- 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
- 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
- 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
- 🔹 Centering Clip Included: Do NOT remove until fully installed
- 🔹 Warranty: 1-year against manufacturing defects
Specifications
| Specification | Details |
|---|---|
| Compatible Vehicles | Suzuki Swift (2017–2020) with 2-pin connector |
| OEM Part Number | 37480M68P00 |
| Connector Type | 2-pin – verify with original part |
| Product Name | Clock Spring / Spiral Cable / Airbag Rotor |
| Material | High-strength flame-retardant plastic + High-purity copper ribbon |
| Operating Temperature | -40°C to +85°C |
| Durability Test | 300,000-cycle flex test |
| Certifications | CE, RoHS, ISO9001 |
| Warranty | 12 months |
Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
