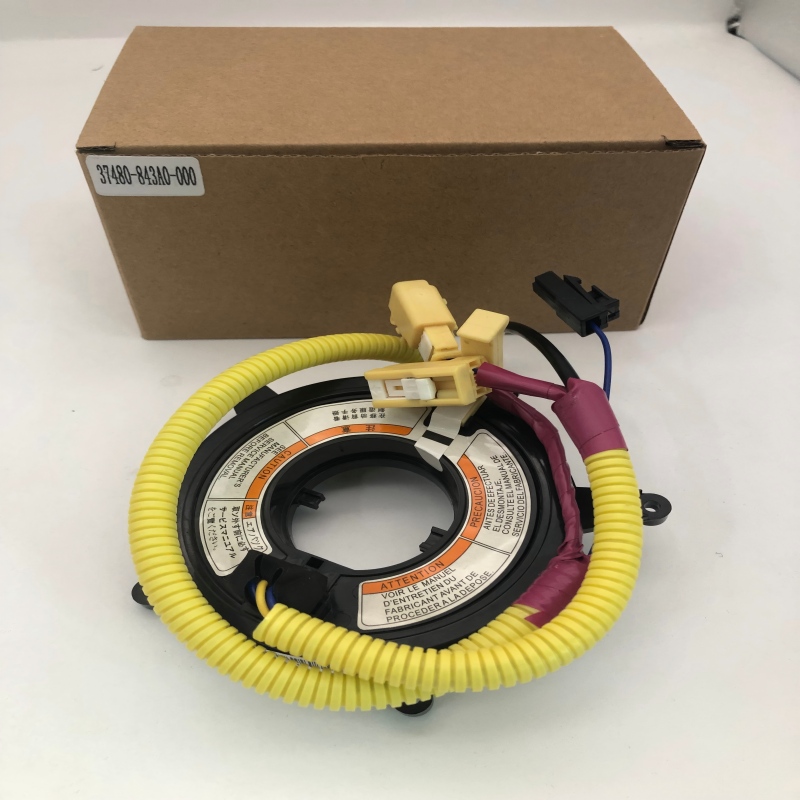

Clock Spring 37480-843A0 / 37480-843A0-000 for Suzuki Alto / Antelope (羚羊) – OEM 37480-843A0

Direct replacement clock spring for Suzuki Alto and Antelope (羚羊) models. OEM number: 37480-843A0 (also 37480-843A0-000). Restores electrical connection for airbag, horn, and steering wheel controls. Features high-strength copper ribbon and flame-retardant plastic. Passed 300,000-cycle test, -40°C to +85°C operation. Includes centering clip. Weight: 0.35 kg, Dimensions: 160x90x50mm . CE/ISO9001 certified. 1-year warranty .

Product Description – Clock Spring 37480-843A0 for Suzuki Alto / Antelope (羚羊)

🔍 IMPORTANT – PLEASE READ

This clock spring is designed for Suzuki Alto and Antelope models. However, trim levels and steering wheel options may affect connector pin layout. Always visually compare with your original part. For 100% confirmation, contact us with your VIN.

Direct Fit for Suzuki Models
This clock spring is engineered for the following Suzuki vehicles :

Model Years Notes
Suzuki Alto 2009–2014 (HA25, etc.) Confirmed compatibility
Suzuki Antelope (羚羊) 2009–2014 Based on Alto platform

Compatible OEM Numbers: 37480-843A0, 37480-843A0-000 (primary) .

Physical Specifications
Based on manufacturer data, this clock spring has the following specifications :

  • ✅ Weight: 0.35 kg
  • ✅ Dimensions: 160 x 90 x 50 mm
  • ✅ Warranty: 1 year

Why Your Clock Spring Matters
The clock spring (also called spiral cable or airbag rotor) is a critical safety component located behind the steering wheel. It maintains continuous electrical connection as the wheel turns, enabling:

  • ✅ Proper airbag deployment
  • ✅ Reliable horn operation
  • ✅ Steering wheel audio controls (if equipped)

A faulty clock spring may trigger the airbag warning light, cause horn failure, or make multifunction buttons unresponsive. Prompt replacement is highly recommended for safety.

⚠️ IMPORTANT SAFETY NOTE

A worn or broken clock spring can lead to airbag malfunction. Since it is responsible for two safety devices (airbag and horn), it is highly advised to replace a faulty unit immediately .

Installation Tip: Always disconnect the battery before starting, ensure the front wheels are straight, and keep the centering clip in place until reassembly .

Quality You Can Trust

  • 🔹 High-Purity Copper Ribbon: Stable, interference-free signal transmission
  • 🔹 Flame-Retardant Housing: Meets stringent automotive safety standards
  • 🔹 Rigorous Testing: 300,000-cycle endurance test (-40°C to +85°C)
  • 🔹 Centering Clip Included: Do NOT remove until fully installed
  • 🔹 Warranty: 1-year against manufacturing defects

Specifications

Specification Details
Compatible Vehicles Suzuki Alto, Suzuki Antelope (羚羊)
OEM Part Numbers 37480-843A0, 37480-843A0-000
Weight 0.35 kg
Dimensions 160 x 90 x 50 mm
Product Name Clock Spring / Spiral Cable / Airbag Rotor
Material High-strength flame-retardant plastic + High-purity copper ribbon
Operating Temperature -40°C to +85°C
Durability Test 300,000-cycle flex test
Certifications CE, RoHS, ISO9001
Warranty 12 months

Package Includes: 1 x Clock Spring Assembly (with centering clip), 1 x Installation Guide (available upon request)
